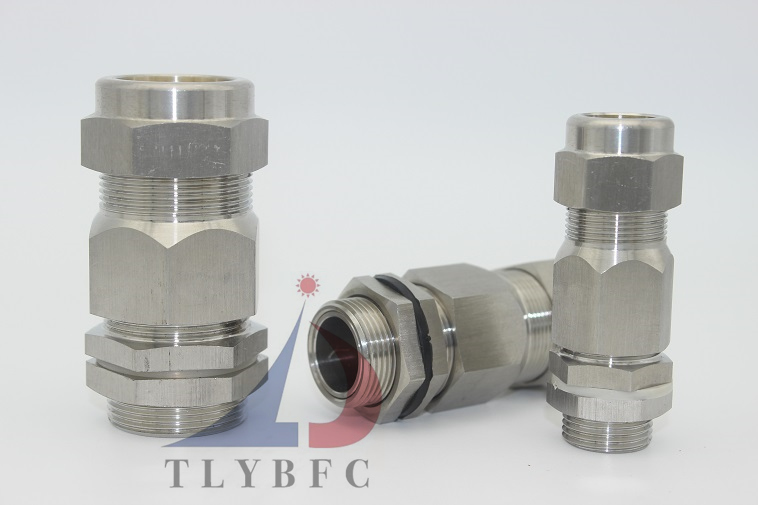

產品材質：采用黃銅，不銹鋼制成。電纜采用填料密封。
產品特點：安裝方便，安全可靠，防護性能好，防爆性能優越等特點
適用范圍：適用于夾持和固定各種類型的銅芯，鋼絲編織或帶裝鎧裝電纜，用于必須對電纜芯線部分防爆及外殼氣體密封達IP66場所。
防爆標志：EXEII 等效于II2G, EXDII等效于II2G EXD II （歐標）
防護等級：IP66
使用場所：1區，2區危險場所，IIA , IIB, IIC 類爆炸性氣體環境。
|
螺牙規格
|
螺紋長度
(mm)
|
電纜直徑密封范圍?(mm)
A B
|
鋼帶大厚度01(mm)
Min Max
|
鋼帶大厚度02(mm)
|
鋼絲直徑
|
大直徑B(mm)
|
|
M20x1.5
|
12
|
6.1-12
|
9.5-17
|
0.1
|
0.4
|
0.96
|
1.8/1.25
|
30
|
|
M25X1.5
|
16
|
11.1-14
|
18.7-29
|
0.1
|
0.71
|
1.4
|
1.25/1.6
|
43
|
|
M32X1.5
|
16
|
17-21
|
22.9-35
|
0.1
|
0.7
|
1.4
|
1.6/2
|
50
|
|
M40X1.5
|
16
|
22-28
|
26-42
|
0.1
|
0.8
|
1.4
|
1.6/2
|
60
|
|
M50X1.5
|
17
|
29.5-39
|
35.5-48
|
0.2
|
0.63
|
1.4
|
21/2.5
|
65
|
|
M63X1.5
|
17
|
40.1-51
|
45.6-62
|
0.2
|
0.63
|
1.5
|
2.5
|
80
|
|
M75X1.5
|
19
|
52.8-63
|
57-74
|
0.3
|
0.81
|
1.5
|
2.5
|
92
|
|
M100X1.5
|
19
|
70-86
|
76-93
|
0.3
|
0.94
|
1.5
|
3.15
|
117
|
|
G1/2"
|
12
|
3.1-8.6
|
6.1-13.4
|
0.1
|
0.4
|
0.1
|
0.85
|
24
|
|
G3/4"
|
12
|
6.1-11.6
|
9.5-15.9
|
0.1
|
0.7
|
0.9
|
0.9/1.25
|
30
|
|
G1"
|
16
|
11.1-19.9
|
18.7-25
|
0.1
|
0.7
|
1.4
|
1.25/1.6
|
43
|
|
G1 1/4"
|
16
|
17-26.2
|
22.9-30
|
0.1
|
0.7
|
1.4
|
1.6/2
|
50
|
|
G1 1/2"
|
16
|
22-32.1
|
26-35
|
0.1
|
0.8
|
1.4
|
1.6/2
|
60
|
|
G2"
|
17
|
29.5-38.1
|
35.5-45
|
0.2
|
0.63
|
1.4
|
2/2.5
|
65
|
|
G2 1/2"
|
17
|
47.2-50
|
45.6-55
|
0.2
|
0.63
|
1.5
|
2.5
|
80
|
|
G3"
|
19
|
52.8-61.9
|
57-72.1
|
0.3
|
0.81
|
1.5
|
2.5
|
92
|
|
G4"
|
19
|
70-86
|
76-93
|
0.3
|
0.936
|
1.5
|
3.15
|
117
|
