應用范圍
1、爆炸性氣體混合物危險場所：1區、2區。
2、爆炸性氣體混合物，ⅡA、ⅡB、ⅡC。
技術參數標準： GB3836材質： 不銹鋼、黃銅、黃銅鍍鎳（ 化學鍍）
密封材料：特制熱塑性橡膠、硅膠
防護等級：IP66， 根據要求可達到IP67-IP68
防爆標記： Exd IIC Gb, Exe IIC Gb /EX tDA21
溫度： 靜態溫度一40 。to + 100 。短時120 。， 動態溫度一20 。to + 80 。短時100 。
適用電纜類型： 非鎧裝電纜、鎧裝電纜密封方法： 位移式密封環境： 高溫、惡劣可選附件： 轉接頭、接地片、密封圈、螺母、菊花墊片、護套電纜填料函可用于戶內、戶外， 1 區、2 區、21 區和22 區域， 適用非鎧裝電纜， 同時在電纜護層上提供防水防塵密封。
產品特點:

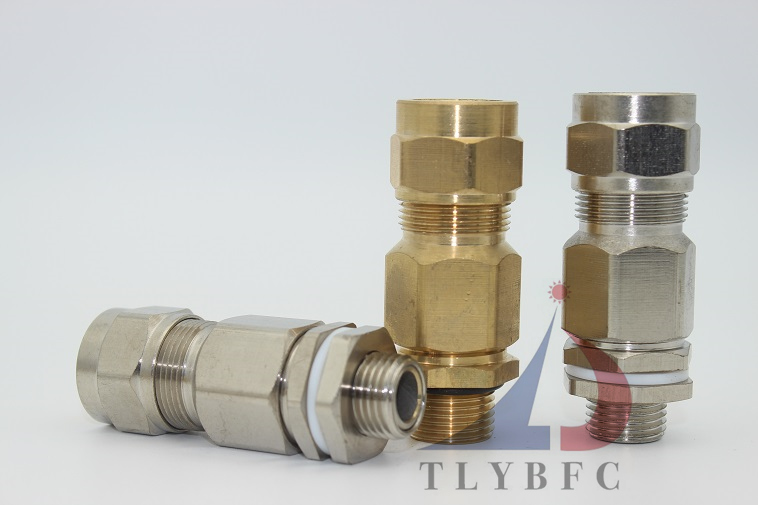

采用銅材或不銹鋼精制而成，黃銅表面可鈍化處理也可鍍鎳；
采用填料式密封,機械式夾持和固定各種帶狀態類鎧裝電纜
可根據不同布線方式,制作用于電纜布線及鋼管布線用的防爆填料函;
各種規格防爆填料函可根據客戶要求,配備各種設備如NPT1/2防爆填料函,M20x1.5公制螺紋防爆填料函。
防爆電纜夾緊密封接頭是連接防爆配電箱，防爆配電柜，防爆接線箱，防爆控制箱進出線孔通頭的，規定進出電纜線要通過防爆電纜夾緊密封接頭來完成。電纜密封接頭前端有外螺紋加鎖緊螺母，里面配橡皮塞墊圈，后端內螺紋配壓緊螺
|
型號
Item No
|
螺紋長度
Thread
Length
L1
|
本體橡膠
Outer
sealing
|
頂部橡膠
Outer
sealing
|
屏蔽層
Tape
braid
|
配套螺母
上限板厚
+Nut Max
platethick
|
接合長度
Joint
Length
H
|
板手
Spanne
SW
|
包裝
Std.Pkg
Pcs
|
|
公制螺紋M
|
|
TLYBFC-EX-M16×1.5-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
50PCS
|
|
TLYBFC-EX-M16×1.5-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-M20×1.5-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-M20×1.5-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-M20×1.5-21
|
16
|
7-14
|
15.5-21
|
≤0.50
|
≤10.5
|
58
|
30
|
25PCS
|
|
TLYBFC-EX-M25×1.5-28
|
16
|
13-20
|
20-28
|
≤0.50
|
≤10.5
|
58
|
36
|
|
TLYBFC-EX-M32×1.5-34
|
16
|
19-26
|
26-34
|
≤0.55
|
≤10.5
|
65
|
44
|
|
TLYBFC-EX-M40×1.5-41
|
16
|
25-32
|
33-41
|
≤0.80
|
≤10.5
|
72
|
54
|
1PCS
|
|
TLYBFC-EX-M50×1.5-46
|
16
|
32-38
|
39-46
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-M50×1.5-53
|
16
|
36-44
|
45-53
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-M63×1.5-60
|
19
|
42-50
|
52-60
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-M63×1.5-66
|
19
|
50-56
|
58-66
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-M75×1.5-66
|
19
|
54-62
|
64-72
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-M75×1.5-78
|
19
|
60-68
|
71-78
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-M80×2.0-84
|
19
|
62-72
|
77-84
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-M80×2.0-90
|
19
|
70-80
|
80-90
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-M85×2.0-90
|
19
|
70-80
|
80-90
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-M90×2.0-96
|
19
|
74-84
|
88-96
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-M90×2.0-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-M100 2.0-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
|
德制螺紋 PG
|
|
TLYBFC-EX-PG9-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
100PCS
|
|
TLYBFC-EX-PG9-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-PG13.5-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-PG13.5-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-PG13.5-21
|
16
|
7-14
|
15.5-21
|
≤0.50
|
≤10.5
|
58
|
30
|
25PCS
|
|
TLYBFC-EX-PG21-28
|
16
|
13-20
|
20-28
|
≤0.50
|
≤10.5
|
58
|
36
|
|
TLYBFC-EX-PG29-34
|
16
|
19-26
|
26-34
|
≤0.55
|
≤10.5
|
65
|
44
|
|
TLYBFC-EX-PG36-41
|
16
|
25-32
|
33-41
|
≤0.80
|
≤10.5
|
72
|
54
|
1PCS
|
|
TLYBFC-EX-PG42-46
|
16
|
32-38
|
39-46
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-PG42-53
|
16
|
36-44
|
45-53
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-PG48-60
|
19
|
42-50
|
52-60
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-PG48-66
|
19
|
50-56
|
58-66
|
≤0.80
|
≤13.5
|
76
|
81
|
|
美制螺紋NPT
|
|
TLYBFC-EX-NPT1/2-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
50PCS
|
|
TLYBFC-EX-NPT1/2-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-NPT1/2-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-NPT1/2-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-NPT1/2-21
|
16
|
7-14
|
15.5-21
|
≤0.50
|
≤10.5
|
58
|
30
|
25PCS
|
|
TLYBFC-EX-NPT3/4-28
|
16
|
13-20
|
20-28
|
≤0.50
|
≤10.5
|
58
|
36
|
|
TLYBFC-EX-NPT1-34
|
16
|
19-26
|
26-34
|
≤0.55
|
≤10.5
|
65
|
44
|
|
TLYBFC-EX-NPT1-1/4-41
|
16
|
25-32
|
33-41
|
≤0.80
|
≤10.5
|
72
|
54
|
1PCS
|
|
TLYBFC-EX-NPT1-1/2-46
|
16
|
32-38
|
39-46
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-NPT1-1/2-53
|
16
|
36-44
|
45-53
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-NPT2-60
|
19
|
42-50
|
52-60
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-NPT2-66
|
19
|
50-56
|
58-66
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-NPT2-1/2-66
|
19
|
54-62
|
64-72
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-NPT2-1/2-78
|
19
|
60-68
|
71-78
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-NPT3-96
|
19
|
74-84
|
88-96
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-NPT3-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-NPT3-1/2-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
|
英制螺紋G
|
|
TLYBFC-EX-G1/2-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
50PCS
|
|
TLYBFC-EX-G1/2-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-G1/2-13
|
16
|
4-8.5
|
8.5-13.5
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-G1/2-16
|
16
|
8-11.5
|
11.5-16
|
≤0.35
|
≤10.5
|
58
|
24
|
|
TLYBFC-EX-G1/2-21
|
16
|
7-14
|
15.5-21
|
≤0.50
|
≤10.5
|
58
|
30
|
25PCS
|
|
TLYBFC-EX-G3/4-28
|
16
|
13-20
|
20-28
|
≤0.50
|
≤10.5
|
58
|
36
|
|
TLYBFC-EX-G1-34
|
16
|
19-26
|
26-34
|
≤0.55
|
≤10.5
|
65
|
44
|
|
TLYBFC-EX-G1-1/4-41
|
16
|
25-32
|
33-41
|
≤0.80
|
≤10.5
|
72
|
54
|
1PCS
|
|
TLYBFC-EX-G1-1/2-46
|
16
|
32-38
|
39-46
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-G1-1/2-53
|
16
|
36-44
|
45-53
|
≤0.80
|
≤10.5
|
73
|
64
|
|
TLYBFC-EX-G2-60
|
19
|
42-50
|
52-60
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-G2-66
|
19
|
50-56
|
58-66
|
≤0.80
|
≤13.5
|
76
|
81
|
|
TLYBFC-EX-G2-1/2-66
|
19
|
54-62
|
64-72
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-G2-1/2-78
|
19
|
60-68
|
71-78
|
≤1.00
|
≤13.5
|
82
|
96
|
|
TLYBFC-EX-G3-96
|
19
|
74-84
|
88-96
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-G3-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
|
TLYBFC-EX-G3-1/2-100
|
19
|
80-90
|
90-100
|
≤1.00
|
≤13.5
|
110
|
110
|
