產品材質： PA尼龍（polyamide）,外層夾緊圈（聚甲醛pom）
螺紋規格： 公制（M）、德制（PG）、英制 （G）
工作溫度： -40℃ ~ ＋110℃
產品顏色： 黑色（特殊顏色可以定做）

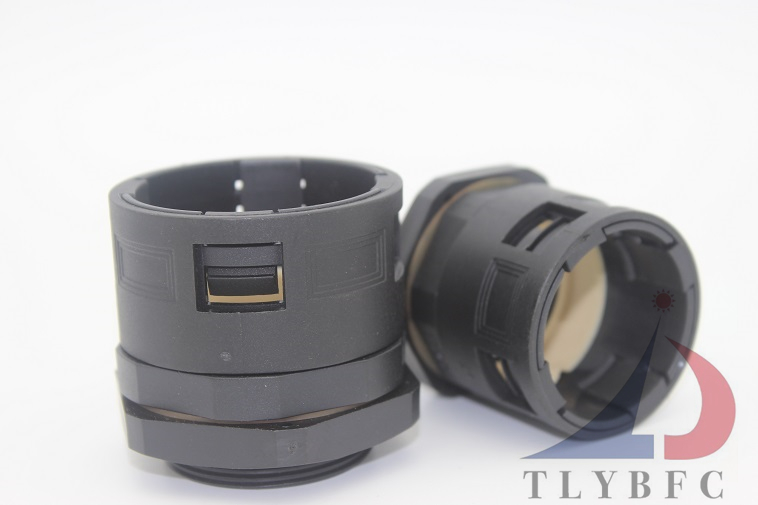

使用方法： TLYBFC-SM 型快速接頭是軟管的配套產品， 可接入設備箱體上，也可根據選用螺紋接入進出口
為內螺紋的電動設備上，只需軟管插入接口即可。
產品特性：內鎖扣和本體特殊設計，裝卸只需撥插無需工具.
|
Item No.
|
Fits to tubing Size
|
Dimension(mm)
|
Thread
|
Packing
pcs/bag
|
|
I.D.
|
A
|
B
|
C
|
E
|
|
TLYBFC-NLB-PG7
|
1/4"
|
7.0
|
17.5
|
30.5
|
8.0
|
12.5
|
PG7
|
50
|
|
TLYBFC-NLB-PG9
|
5/16"
|
10.5
|
20.6
|
37.0
|
10.0
|
15.2
|
PG9
|
50
|
|
TLYBFC-NLB-PG11
|
3/8"
|
12.5
|
23.0
|
37.0
|
10.0
|
18.6
|
PG11
|
50
|
|
TLYBFC-NLB-PG13.5
|
3/8"
|
12.5
|
23.0
|
37.0
|
10.0
|
20.4
|
PG13.5
|
50
|
|
TLYBFC-NLB-PG16
|
1/2"
|
17.0
|
29.5
|
44.0
|
12.0
|
22.5
|
PG16
|
50
|
|
TLYBFC-NLB-PG21
|
3/4"
|
23.3
|
37.0
|
46.0
|
12.0
|
28.3
|
PG21
|
50
|
|
TLYBFC-NLB-PG29
|
1"
|
30.0
|
44.0
|
48.0
|
12.0
|
37.0
|
PG29
|
50
|
|
TLYBFC-NLB-PG36
|
1-1/4"
|
36.5
|
54.0
|
48.0
|
12.0
|
47.0
|
PG36
|
25
|
|
TLYBFC-NLB-PG48
|
2"
|
48.0
|
67.0
|
52.0
|
14.5
|
59.3
|
PG48
|
20
|
|
TLYBFC-NLB-PG16
|
18.5
|
17.0
|
27.7
|
44.0
|
12.0
|
22.5
|
PG16
|
50
|
|
TLYBFC-NLB-PG21
|
25
|
23.4
|
34.0
|
46.4
|
12.0
|
28.3
|
PG21
|
50
|
|
TLYBFC-NLB-PG29
|
32
|
30.0
|
41.4
|
48.5
|
12.0
|
37.0
|
PG29
|
50
|
M.Thread：
|
Item No.
|
Fits to tubing Size
|
Dimension(mm)
|
Thread
|
Packing
pcs/bag
|
|
I.D.
|
A
|
B
|
C
|
E
|
|
TLYBFC-NLB-M10*1.5
|
1/4"
|
7.0
|
17.5
|
30.5
|
10.0
|
10.0
|
M10*1.5
|
50
|
|
TLYBFC-NLB-M12*1.5
|
5/16"
|
10.5
|
20.6
|
37.0
|
13.0
|
12.0
|
M12*1.5
|
50
|
|
TLYBFC-NLB-M16*1.5
|
3/8"
|
12.5
|
23.0
|
37.0
|
13.0
|
16.0
|
M16*1.5
|
50
|
|
TLYBFC-NLB-M20*1.5
|
1/2"
|
17.0
|
29.5
|
44.0
|
13.0
|
20.0
|
M20*1.5
|
50
|
|
TLYBFC-NLB-M25*1.5
|
3/4"
|
23.3
|
37.0
|
46.0
|
15.0
|
25.0
|
M25*1.5
|
50
|
|
TLYBFC-NLB-M32*1.5
|
1"
|
30.0
|
44.0
|
48.0
|
15.0
|
32.0
|
M32*1.5
|
50
|
|
TLYBFC-NLB-M40*1.5
|
1-1/4"
|
36.5
|
54.0
|
48.0
|
17.0
|
40.0
|
M40*1.5
|
25
|
|
TLYBFC-NLB-M50*1.5
|
2"
|
48.0
|
67.0
|
52.0
|
17.0
|
50.0
|
M50*1.5
|
20
|
|
TLYBFC-NLB-M20*1.5
|
18.5
|
15.0
|
27.7
|
45.2
|
13.0
|
20.0
|
M20*1.5
|
50
|
|
TLYBFC-NLB-M25*1.5
|
25
|
21.0
|
34.0
|
50.0
|
15.0
|
25.0
|
M25*1.5
|
50
|
|
TLYBFC-NLB-M32*1.5
|
32
|
27.5
|
41.4
|
52.0
|
15.0
|
32.0
|
M32*1.5
|
50
|
UN Thread：
|
Item No.
|
Fits to tubing Size
|
Dimension(mm)
|
Thread
|
Packing
pcs/bag
|
|
I.D.
|
A
|
B
|
C
|
E
|
|
TLYBFC-NLB-PF3/8"
|
1/4"
|
7.0
|
17.5
|
30.5
|
10.0
|
16.3
|
PF3/8"
|
50
|
|
TLYBFC-NLB-PF3/8"
|
5/16"
|
10.5
|
20.6
|
37.0
|
13.0
|
16.3
|
PF3/8"
|
50
|
|
TLYBFC-NLB-PF1/2"
|
3/8"
|
12.5
|
23.0
|
39.0
|
13.0
|
20.9
|
PF1/2"
|
50
|
|
TLYBFC-NLB-PF1/2"
|
1/2"
|
17.0
|
|
|
|
|
|
|
