螺牙規格 ：英制G(PF)螺牙，符合ISO與JIS平行螺紋管牙規范。（Parallel Threads for Pipes-ISO 228-1）。

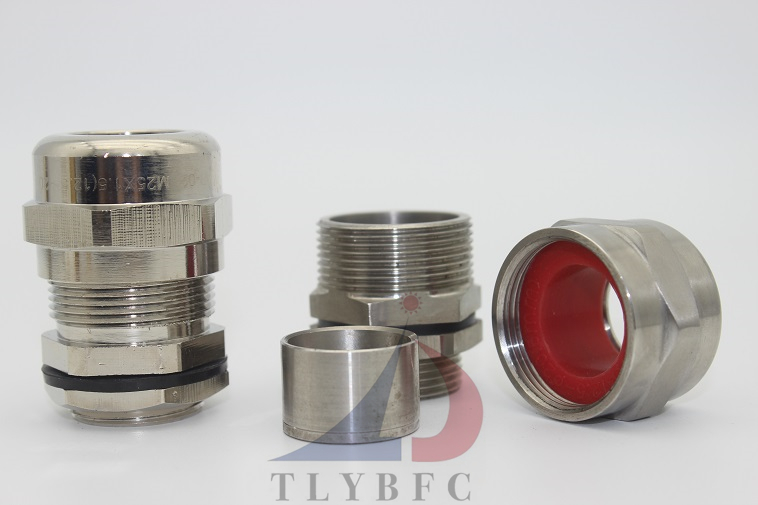

產品說明 ：采用黃銅或不銹鋼材質精制而成，內置隔爆裝置，具有防爆功能，另有特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑，電纜鎖緊采用填料密封，防護性能
好.具有快捷安裝，防護性能好，防爆等特點。。
防護等級 ：在規定的卡口范圍內，并使用密封圈旋緊迫緊頭，達到IP65-10Bar
工作溫度 ：-40℃~＋100℃短時可達＋120℃
產品材質 ：黃銅或304不銹鋼搭配密封橡膠制成。
鎧裝電纜 ：適用于夾緊和固定各種類型的鋼芯.鋼絲編織或帶狀鎧裝電纜。
適用場所 ：1區.2區危險場所及IIA.IIB.IIC類爆炸性氣體環境。
安裝步驟：
1、剝?nèi)ル娎|外護層及屏蔽層，沿著外護層圓周的方向剪開約15mm；
2、將電纜穿出電纜防水接頭，去掉外護層，將屏蔽層層壓在屏蔽錐面上；
3、屏蔽環壓緊屏蔽層；
4、放入接頭體，旋緊螺帽，安裝完畢。
|
產品型號
|
螺紋規格
|
電纜范圍進線
|
螺紋長度
|
包裝數量
|
|
TLYBFC-QXKZ010-M16
|
M16X1.5
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-M20
|
M20X1.5
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-M20
|
M20X1.5
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-M20
|
M20X1.5
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-M20
|
M20X1.5
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-M20
|
M20X1.5
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-M25
|
M25X1.5
|
8-14
|
12
|
50
|
|
TLYBFC-QXKZ16-M25
|
M25X1.5
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-M25
|
M25X1.5
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-M25
|
M25X1.5
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-M25
|
M25X1.5
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-M32
|
M32X1.5
|
18-25
|
12
|
20
|
|
TLYBFC-XQKZ28-M32
|
M32X1.5
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-M32
|
M32X1.5
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-M40
|
M40X1.5
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-M40
|
M40X1.5
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-M50
|
M50X1.5
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-M50
|
M50X1.5
|
37-44
|
15
|
10
|
TLYBFC-QXKZ50-M63
|
M63X.15
|
40-50
|
18
|
5
|
TLYBFC-QXKZ55-M63
|
M63X1.5
|
43-55
|
18
|
5
|
TLYBFC-QXKZ63-M75
|
M75X2.0
|
50-63
|
18
|
5
|
TLYBFC-QXKZ68-M75
|
M75X2.0
|
54-68
|
18
|
1
|
TLYBFC-QXKZ90-M90
|
M90X2.0
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-M100
|
M100X2.0
|
78-98
|
18
|
1
|
|
產品型號
|
螺紋規格
|
電纜范圍進線
|
螺紋長度
|
包裝數量
|
|
TLYBFC-QXKZ10-NPT3/8
|
NPT3/8
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-NPT1/2
|
NPT1/2
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-NPT1/2
|
NPT1/2
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-NPT1/2
|
NPT1/2
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-NPT1/2
|
NPT1/2
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-NPT1/2
|
NPT1/2
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-NPT3/4
|
NPT3/4
|
8-14
|
12
|
25
|
|
TLYBFC-QXKZ16-NPT3/4
|
NPT3/4
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-NPT3/4
|
NPT3/4
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-NPT3/4
|
NPT3/4
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-NPT3/4
|
NPT3/4
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-NPT1
|
NPT1
|
18-25
|
12
|
20
|
|
TLYBFC-QXKZ28-NPT1
|
NPT1
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-NPT1
|
NPT1
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-NPT1 1/4
|
NPT1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-NPT1 1/4
|
NPT1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-NPT1 1/2
|
NPT1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-NPT1 1/2
|
NPT1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-QXKZ50-NPT2
|
NPT2
|
40-50
|
18
|
5
|
|
TLYBFC-QXKZ55-NPT2
|
NPT2
|
43-55
|
18
|
5
|
|
TLYBFC-QXKZ63-NPT2 1/2
|
NPT2 1/2
|
50-63
|
18
|
2
|
TLYBFC-QHXKZ68-NPT2 1/2
|
NPT2 1/2
|
54-68
|
18
|
2
|
TLYBFC-QXKZ78-NPT3
|
NPT3
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-NPT4
|
NPT4
|
78-98
|
18
|
1
|
|
產品型號
|
螺紋規格
|
電纜范圍進線
|
螺紋長度
|
包裝數量
|
|
TLYBFC-QXKZ10-G3/8
|
G3/8
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-G1/2
|
G1/2
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-G1/2
|
G1/2
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-G1/2
|
G1/2
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-G1/2
|
G1/2
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-G1/2
|
G1/2
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-G3/4
|
G3/4
|
8-14
|
12
|
25
|
|
TLYBFC-QXKZ16-G3/4
|
G3/4
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-G3/4
|
G3/4
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-G3/4
|
G3/4
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-G3/4
|
G3/4
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-G1
|
G1
|
18-25
|
12
|
20
|
|
TLYBFC-QXKZ28-G1
|
G1
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-G1
|
G1
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-G1 1/4
|
G1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-G1 1/4
|
G1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-G1 1/2
|
G1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-NPT1 1/2
|
G1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-QXKZ50-NPT2
|
G2
|
40-50
|
18
|
5
|
|
TLYBFC-QXKZ55-NPT2
|
G2
|
43-55
|
18
|
5
|
|
TLYBFC-QXKZ63-NPT2 1/2
|
G2 1/2
|
50-63
|
18
|
2
|
TLYBFC-QXKZ68-NPT2 1/2
|
G2 1/2
|
54-68
|
18
|
2
|
TLYBFC-QXKZ78-NPT3
|
G3
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-NPT4
|
G4
|
78-98
|
18
|
1
|
