螺牙規格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT錐形螺牙。
產品材質：A、C、F部分均黃銅鍍鎳制成，D部分采用白色尼龍制成。B、E部分采用丁晴橡膠（NBR）制成。
防火等級：D部分為UL94V-2,低煙無鹵。
防護等級：在規定的卡口范圍內，并使用O型密封圈旋緊迫緊頭，達到IP68.
顏色種類：A、C、F部位為金屬色。D為白色，B、E為黑色。
工作溫度：靜態：-40℃到100℃，短時間達120℃。動態：-20℃到80℃，短時間達100℃
產品特性：特殊夾緊爪與夾緊圈凹凸相扣之設計，配合迫緊頭裝配省時便利，夾緊電纜范 圍大、抗拉力強、可防水、防塵、抗鹽、耐酸堿、酒精、油脂及一般溶劑。

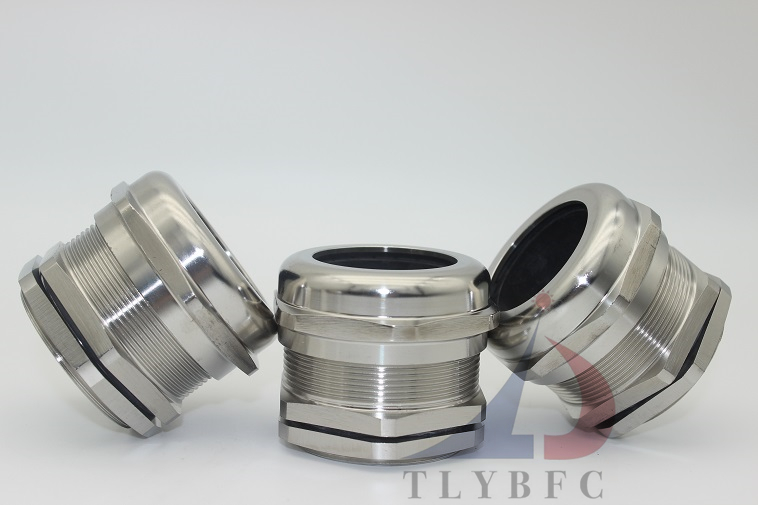

使用方法：TLYBFZ-M型金屬格蘭頭是電纜的配套產品，接頭可將電纜鎖緊，另一端可接入
設備箱體上，也可以根據選用螺紋接入進出口為內螺紋的電機設備上
更多選擇：可根據客戶實際需要，特別定制。需要訂購時來電咨詢。
|
產品型號
|
螺紋規格
|
卡口范圍
|
螺紋外徑
|
螺紋長度
|
加長螺紋長度
|
高度
|
扳手尺寸
|
包裝數量
|
TLYBFC-SSM-M8
|
M8X1.0
|
2-3.5
|
8
|
5.5
|
|
15.5
|
12
|
100
|
TLYBFC-SSM-M10
|
M10X1.0
|
3-6.5
|
10
|
6
|
|
19
|
14
|
100
|
TLYBFC-SSM-M12
|
M12X1.5
|
3-6.5
|
12
|
6
|
10
|
19
|
14
|
100
|
TLYBFC-SSM-M12-D
|
M12X1.5
|
4-8
|
12
|
7
|
|
21
|
17
|
100
|
TLYBFC-SSM-M14
|
M14X1.5
|
4-8
|
14
|
7
|
|
21
|
17
|
100
|
TLYBFC-SSM-M16-H
|
M16X1.5
|
3-6.5
|
16
|
7
|
10
|
20
|
14/18
|
100
|
TLYBFC-SSM-M16
|
M16X1.5
|
4-8
|
16
|
7
|
10
|
21
|
17/18
|
100
|
TLYBFC-SSM-M16-D
|
M16X1.5
|
5-10
|
16
|
7
|
10
|
22.5
|
20
|
100
|
TLYBFC-SSM-M18
|
M18X1.5
|
5-10
|
18
|
7
|
10
|
22.5
|
20
|
100
|
TLYBFC-SSM-M20H
|
M20X1.5
|
5-10
|
20
|
7
|
10
|
22.5
|
20/22
|
100
|
TLYBFC-SSM-M20
|
M20X1.5
|
6-12
|
20
|
7
|
10
|
23.5
|
22
|
100
|
TLYBFC-SSM-M20-D
|
M20X1.5
|
8-14
|
20
|
7
|
10
|
23
|
24
|
50
|
TLYBFC-SSM-M22
|
M22X1.5
|
8-14
|
22
|
7
|
10
|
23
|
24
|
50
|
TLYBFC-SSM-M22-D
|
M22X1.5
|
10-16
|
22
|
7
|
11
|
24.5
|
28
|
50
|
TLYBFC-SSM-M24-H
|
M24X1.5
|
6-12
|
24
|
7
|
12
|
23.5
|
24/27
|
50
|
TLYBFC-SSM-M24
|
M24X1.5
|
8-14
|
24
|
7
|
12
|
23
|
24/27
|
50
|
TLYBFC-SSM-M25-H
|
M25X1.5
|
8-14
|
25
|
7
|
12
|
23.5
|
24/28
|
50
|
TLYBFC-SSM-M25
|
M25X1.5
|
10-16
|
25
|
7
|
12
|
24
|
28
|
50
|
TLYBFC-SSM-M25-D
|
M25X1.5
|
13-18
|
25
|
7
|
12
|
26
|
30
|
50
|
TLYBFC-SSM-M27-H
|
M27X2.0
|
10-16
|
27
|
8
|
12
|
24.5
|
28/30
|
25
|
TLYBFC-SSM-M27
|
M27X2.0
|
13-18
|
27
|
8
|
12
|
26
|
30
|
25
|
TLYBFC-SSM-M30-H
|
M30X2.0
|
10-16
|
30
|
8
|
12
|
24.5
|
28/34
|
25
|
TLYBFC-SSM-M30
|
M30X2.0
|
13-18
|
30
|
8
|
12
|
26
|
30/34
|
25
|
TLYBFC-SSM-M32-H
|
M32X1.5
|
13-18
|
32
|
8
|
12
|
26
|
30/36
|
25
|
TLYBFC-SSM-M32
|
M32X1.5
|
15-22
|
32
|
8
|
12
|
26
|
36
|
25
|
TLYBFC-SSM-M32-D
|
M32X1.5
|
18-25
|
32
|
8
|
12
|
33
|
40
|
25
|
TLYBFC-SSM-M33
|
M33X2.0
|
18-25
|
33
|
8
|
12
|
33
|
40
|
20
|
TLYBFC-SSM-M36-H
|
M36X2.0
|
15-22
|
36
|
8
|
12
|
28
|
36/40
|
20
|
TLYBFC-SSM-M36
|
M36X2.0
|
18-25
|
36
|
8
|
12
|
33
|
40
|
20
|
TLYBFC-SSM-M40-H
|
M40X1.5
|
18-25
|
40
|
9
|
15
|
33
|
40/45
|
15
|
TLYBFC-SSM-M40
|
M40X1.5
|
22-30
|
40
|
9
|
15
|
35.5
|
45
|
15
|
TLYBFC-SSM-M40-D
|
M40X1.5
|
22-32
|
40
|
9
|
15
|
38.5
|
50
|
15
|
TLYBFC-SSM-M42
|
M42X2.0
|
22-32
|
42
|
9
|
15
|
38.5
|
50
|
15
|
TLYBFC-SSM-M48
|
M48X2.0
|
22-32
|
48
|
9
|
15
|
38.5
|
50/52
|
15
|
TLYBFC-SSM-M50-H
|
M50X1.5
|
22-32
|
50
|
9
|
15
|
38.5
|
55
|
10
|
TLYBFC-SSM-M50
|
M50X1.5
|
30-38
|
50
|
10
|
15
|
40
|
55/58
|
10
|
TLYBFC-SSM-M56
|
M56X2.0
|
30-38
|
56
|
10
|
15
|
40
|
58/60
|
10
|
TLYBFC-SSM-M60
|
M60X2.0
|
37-44
|
60
|
10
|
15
|
41.5
|
65
|
10
|
TLYBFC-SSM-M63
|
M63X1.5
|
37-44
|
63
|
10
|
15
|
41.5
|
65/70
|
10
|
TLYBFC-SSM-M63-D
|
M63X1.5
|
42-53
|
63
|
10
|
15
|
44
|
75
|
10
|
TLYBFC-SSM-M64
|
M64X2.0
|
37-44
|
64
|
10
|
15
|
41.5
|
65/70
|
10
|
TLYBFC-SSM-M64-D
|
M64X2.0
|
42-53
|
64
|
10
|
15
|
41.5
|
75
|
10
|
TLYBFC-SSM-M72
|
M72X2.0
|
55-61
|
72
|
23
|
|
57
|
86
|
5
|
TLYBFC-SSM-M76
|
M76X2.0
|
55-61
|
76
|
24
|
|
57
|
86
|
5
|
TLYBFC-SSM-M80
|
M80X2.0
|
55-61
|
80
|
24
|
|
47
|
86
|
2
|
TLYBFC-SSM-M88
|
M88X2.0
|
65-71
|
88
|
25
|
|
50
|
96
|
2
|
TLYBFC-SSM-M100
|
M100X2.0
|
74-80
|
100
|
25
|
|
61
|
112
|
1
|
TLYBFC-SSM-M114
|
M114X2.0
|
86-93
|
114
|
25
|
|
63
|
126
|
1
|
TLYBFC-SSM-M125
|
M125X2.0
|
95-102
|
125
|
25
|
|
63
|
138
|
1
|
|
產品型號
|
螺紋規格
|
卡口范圍
|
螺紋外徑
|
螺紋長度
|
加長螺紋
|
高度
|
扳手尺寸
|
包裝數量
|
TLYBFC-SSM-PG07
|
PG7
|
3-6.5
|
12.5
|
6
|
10
|
20
|
14
|
100
|
TLYBFC-SSM-PG09-H
|
PG9
|
3-6.5
|
15.2
|
7
|
10
|
19
|
14/17
|
100
|
TLYBFC-SSM-PG09
|
PG9
|
4-8
|
15.2
|
7
|
10
|
21
|
17
|
100
|
TLYBFC-SSM-PG11
|
PG11
|
5-10
|
18.6
|
7
|
10
|
22.5
|
20
|
100
|
TLYBFC-SSM-PG13.5-H
|
PG13.5
|
5-10
|
20.4
|
7
|
10
|
23
|
20/22
|
100
|
TLYBFC-SSM-PG13.5
|
PG13.5
|
6-12
|
20.4
|
7
|
10
|
23.5
|
22
|
100
|
TLYBFC-SSM-PG16-H
|
PG16
|
6-12
|
22.5
|
7
|
10
|
23.5
|
22/24
|
100
|
TLYBFC-SSM-PG16
|
PG16
|
8-14
|
22.5
|
7
|
10
|
23
|
24
|
100
|
TLYBFC-SSM-PG21-H
|
PG21
|
10-16
|
28.3
|
7
|
12
|
24
|
28/30
|
50
|
TLYBFC-SSM-PG21
|
PG21
|
13-18
|
28.3
|
7
|
12
|
26
|
30
|
50
|
TLYBFC-SSM-PG29-H
|
PG29
|
15-22
|
37
|
8
|
12
|
28
|
36/40
|
50
|
TLYBFC-SSM-PG29
|
PG29
|
18-25
|
37
|
8
|
12
|
33
|
40
|
50
|
TLYBFC-SSM-PG36
|
PG36
|
22-32
|
47
|
9
|
15
|
38.5
|
50
|
25
|
TLYBFC-SSM-PG42
|
PG42
|
30-38
|
54
|
10
|
15
|
40
|
58
|
25
|
TLYBFC-SSM-PG48
|
PG48
|
37-44
|
59.3
|
10
|
15
|
41
|
65
|
15
|
TLYBFC-SSM-PG63
|
PG63
|
42-53
|
72
|
10
|
15
|
44.5
|
77
|
10
|
|
產品型號
|
螺紋規格
|
卡口范圍
|
螺紋外徑
|
螺紋長度
|
高度
|
扳手尺寸
|
包裝數量
|
TLYBFC-SSM-G1/4
|
G1/4
|
3-6.5
|
13.11
|
7
|
19
|
14
|
100
|
TLYBFC-SSM-G3/8
|
G3/8
|
4-8
|
16.66
|
8
|
21
|
17/20
|
100
|
TLYBFC-SSM-G1/2-H
|
G1/2
|
5-10
|
20.99
|
8
|
23
|
20/24
|
100
|
TLYBFC-SSM-G1/2
|
G1/2
|
6-12
|
20.99
|
8
|
23.5
|
22/24
|
100
|
TLYBFC-SSM-G1/2-D
|
G1/2
|
8-14
|
20.99
|
8
|
23.5
|
24
|
100
|
TLYBFC-SSM-G3/4-TH
|
G3/4
|
6-12
|
26.44
|
8
|
23.5
|
22/30
|
50
|
TLYBFC-SSM-G3/4-H
|
G3/4
|
8-14
|
26.44
|
8
|
23.5
|
24/30
|
50
|
TLYBFC-SSM-G3/4
|
G3/4
|
13-18
|
26.44
|
8
|
26
|
30
|
50
|
TLYBFC-SSM-G1
|
G1
|
18-25
|
33.24
|
9
|
33
|
40
|
25
|
TLYBFC-SSM-G1 1/4
|
G1 1/4
|
22-32
|
41.91
|
10
|
38.5
|
50
|
25
|
TLYBFC-SSM-G1 1/2
|
G1 1/2
|
30-38
|
47.8
|
10
|
40
|
55/58
|
25
|
TLYBFC-SSM-G2
|
G2
|
37-44
|
59.61
|
11
|
41
|
65
|
20
|
TLYBFC-SSM-G2 1/2
|
G2 1/2
|
55-61
|
75.18
|
24
|
57
|
86
|
2
|
TLYBFC-SSM-G3
|
G3
|
65-71
|
87.88
|
25
|
50
|
96
|
2
|
TLYBFC-SSM-G3 1/2
|
G3 1/2
|
74-80
|
100.33
|
25
|
61
|
112
|
1
|
TLYBFC-SSM-G4
|
G4
|
86-93
|
113.03
|
25
|
63
|
126
|
1
|
TLYBFC-SSM-G4 1/2
|
G4 1/2
|
95-102
|
125.73
|
25
|
63
|
138
|
1
|
|
產品型號
|
螺紋規格
|
卡口范圍
|
螺紋外徑
|
螺紋長度
|
高度
|
扳手尺寸
|
包裝數量
|
TLYBFC-SSM-NPT3/8
|
NPT3/8
|
4-8
|
17.55
|
11
|
21
|
17/20
|
100
|
TLYBFC-SSM-NPT1/2-H
|
NPT1/2
|
5-10
|
21.223
|
13
|
23
|
20/24
|
100
|
TLYBFC-SSM-NPT1/2
|
NPT1/2
|
6-12
|
21.223
|
13
|
23.5
|
22/24
|
100
|
TLYBFC-SSM-NPT1/2-D
|
NPT1/2
|
8-14
|
21.223
|
13
|
23.5
|
24
|
100
|
TLYBFC-SSM-NPT3/4-TH
|
NPT3/4
|
6-12
|
26.568
|
13
|
23.5
|
22/30
|
100
|
TLYBFC-SSM-NPT3/4-H
|
NPT3/4
|
8-14
|
26.568
|
13
|
23.5
|
24/30
|
50
|
TLYBFC-SSM-NPT3/4
|
NPT3/4
|
13-18
|
26.568
|
13
|
26
|
30
|
50
|
TLYBFC-SSM-NPT1
|
NPT1
|
18-25
|
33.227
|
16
|
33
|
40
|
50
|
TLYBFC-SSM-NPT1 1/4
|
NPT1 1/4
|
22-32
|
41.984
|
16
|
38.5
|
50
|
15
|
TLYBFC-SSM-NPT1 1/2
|
NPT1 1/2
|
30-38
|
48.053
|
18
|
40
|
55/58
|
10
|
TLYBFC-SSM-NPT2
|
NPT2
|
37-44
|
60.091
|
18
|
41
|
65
|
5
|
TLYBFC-SSM-NPT3
|
NPT3
|
55-61
|
88.608
|
18
|
45
|
94
|
1
|
