螺牙規格 ：公制MG牙，德制PG牙，英制G(PF)牙，美制NPT牙。

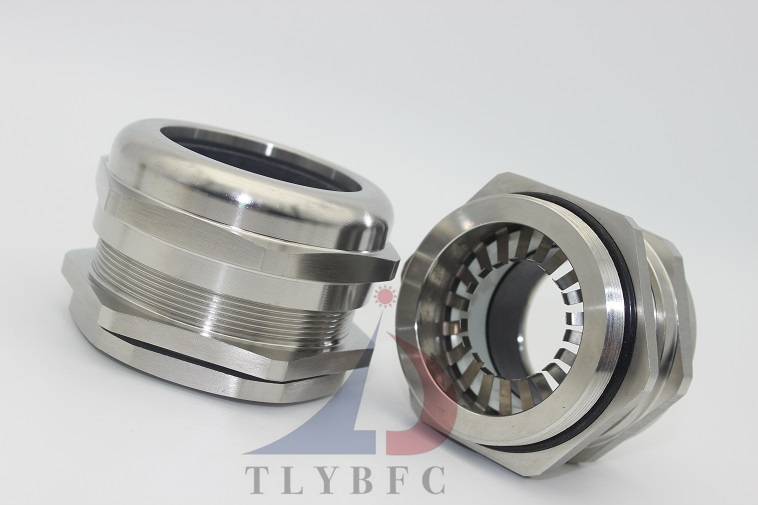

產品說明 ：采用304不銹鋼材質精制而成，另可在隔離線電纜時,降低電磁波干擾，本產品全數通過1000小時抗UV耐候?qū)嶒?yàn)且防水與抗拉力功能不變。產品有耐酸堿、耐化學物質與一般溶劑等抗腐蝕特性，可廣泛用于機器、自動控制、電氣、網絡、連接器、電信或通信、照明等各個領域。
防護等級 ：在規定的卡口范圍內，并使用密封圈旋緊迫緊頭，達到IP68-10Bar
工作溫度 ：-40℃~＋100℃短時可達＋120℃
產品材質 ：A.C.F 部份以不銹鋼制成，E 部份以 UL 認可之尼龍 PA66 制成 ( 防火等級 UL 94V-2 )，B 及 D 部份采用EPDM耐候橡膠制成。
安裝方法：不銹鋼防水接頭出線口一端可將進出電纜鎖緊并起到防水防塵、防震動的作用，另一端可接入設備箱體上，也可以根據選用螺紋。接入進出口為內螺紋的電動設備上。
產品顏色 ：不銹鋼本色
備注：接受非標、定制316不銹鋼,歡迎來電咨詢!
|
產品型號
|
螺紋規格
|
電纜范圍
|
螺紋外徑
|
螺紋長度
|
高度
|
扳手尺寸
|
穿線方式
|
包裝數量
|
|
TLYBFC-EMV.SC-M12 -SS
|
M12X1.5
|
3-6.5
|
12
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-M12-SS
|
M12X1.5
|
4-8
|
12
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFC-EMV.SC-M16-SS
|
M16X1.5
|
4-8
|
16
|
7
|
21
|
17/18
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-M16-SS
|
M16X1.5
|
5-10
|
16
|
7
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-M20-SS
|
M20X1.5
|
7-12
|
20
|
7
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-M20-SS
|
M20X1.5
|
9-14
|
20
|
7
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-M25-SS
|
M25X1.5
|
11-16
|
25
|
7
|
24.5
|
28
|
A/B
|
18
|
|
TLYBFC-EMV.SC1-M25-SS
|
M25X1.5
|
13-18
|
25
|
7
|
28.5
|
30
|
A
|
18
|
|
TLYBFC-EMV.SC-M32-SS
|
M32X1.5
|
15-21
|
32
|
8
|
28
|
36
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-M32-SS
|
M32X1.5
|
17-24
|
32
|
8
|
33
|
38
|
A
|
8
|
|
TLYBFC-EMV.SC-M40-SS
|
M40X1.5
|
21-30
|
40
|
9
|
38
|
45
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-M40-SS
|
M40X1.5
|
22-32
|
40
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFC-EMV.SC-M50-SS
|
M50X1.5
|
30-38
|
50
|
9
|
40
|
55/58
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-M50-SS
|
M50X1.5
|
30-40
|
50
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFC-EMV.SC-M63-SS
|
M63X1.5
|
37-44
|
63
|
10
|
41.5
|
65/70
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-M63-SS
|
M63X1.5
|
38-53
|
63
|
10
|
48
|
75
|
A
|
2
|
PG德制牙
|
產品型號
|
螺紋規格
|
電纜范圍
|
螺紋外徑
|
螺紋長度
|
高度
|
扳手尺寸
|
穿線方式
|
包裝數量
|
|
TLYBFC-EMV.SC-PG07-SS
|
PG07
|
3-6.5
|
12.5
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-PG07-SS
|
PG07
|
4-8
|
12.5
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFC-EMV.SC-PG09-SS
|
PG09
|
4-8
|
15.2
|
10
|
21
|
17
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-PG09-SS
|
PG09
|
5-10
|
15.2
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-PG11-SS
|
PG11
|
4-8
|
18.6
|
10
|
21
|
17/20
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG11-SS
|
PG11
|
5-10
|
18.6
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-PG13.5-SS
|
PG13.5
|
7-12
|
20.4
|
10
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG13.5-SS
|
PG13.5
|
9-14
|
20.4
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-PG16-SS
|
PG16
|
7-12
|
22.5
|
10
|
23.5
|
22/24
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG16-SS
|
PG16
|
9-14
|
22.5
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-PG21-SS
|
PG21
|
11-16
|
28.3
|
10
|
24.5
|
28/30
|
A/B
|
18
|
|
TLYBFC-EMV.SC1-PG21-SS
|
PG21
|
13-18
|
28.3
|
10
|
28.5
|
30
|
A
|
18
|
|
TLYBFC-EMV.SC-PG29-SS
|
PG29
|
15-21
|
37
|
8
|
28
|
36/40
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-PG29-SS
|
PG29
|
17-24
|
37
|
8
|
33
|
38/40
|
A
|
8
|
|
TLYBFC-EMV.SC-PG36-SS
|
PG36
|
21-30
|
47
|
9
|
38
|
45/50
|
A/B
|
4
|
|
TLYBFC-EMV.SC1-PG36-SS
|
PG36
|
22-32
|
47
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFC-EMV.SC-PG42-SS
|
PG42
|
30-38
|
54
|
9
|
40
|
58
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-PG42-SS
|
PG42
|
30-40
|
54
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFC-EMV.SC-PG48-SS
|
PG48
|
37-44
|
59.3
|
10
|
41.5
|
65
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-PG48-SS
|
PG48
|
38-53
|
59.3
|
10
|
48
|
75
|
A
|
2
|
